iBeacon based on CC2541 module with 1000mAH CR2477 battery

FOB Reference Price:Get Latest Price
US $1-8 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MINEW
Model Number:
MS54V3
operation voltage:
2.0-3.6Vdc
frequency:
2.4Ghz
operation System:
iOS 7.x and Android 4.3+
certification:
Apple certified, CE and FCC certified
SupplyAbility
SupplyAbility:
25000 Pair/Pairs per Week
Packaging & Delivery
Packaging Details
Standard package box
Port
ShenZhen
Lead Time :
3-7 working days

Specifications

1. CC2541 module built-in iBeacon firmware
2. iBeacon firmware
3. BLE 4.0 low energy module
4. Built-in 1000mAH coin battery

iBeacon based on CC2541 module with 1000mAH CR2477 battery, CE and FCC Approval

About iBeacon:

  • Development and production including firmware and hardware all by MINEW Technologies
  • Apple certified iBeacon firmware supports CC2540 and CC2541 BLE 4.0 modules
  • Built-in pairing password to prevent others to modify the settings
  • UUID, Major, Minor values can be changed and modified by customer own
  • The name of iBeacon that shows on iOS device can be customized
  • Built-in JTAG port for customized other application firmware
  • Standard plastic case for iBeacon module is available
  • The plastic case can be printed customer's logo if required
  • Support iOS7.0 and Android 4.3 above version
  • Soft reboot function
  • Replaceable 1000mAH CR2477 battery (the capacity is 2 times of CR2450)
  • With power switch to save power consumption
  • CE/FCC/BQB EPL Approvals





Default Settings:

  • Name of iBeacon: MiniBeacon
  • UUID:  E2C56DB5-DFFB-48D2-B060-D0F5A71096E0
  • Major and Minor: 0, 0 (Only allowed numeric)
  • Transmission power: -59 (for Location using)
  • Pairing passowrd: MINEW



Other Features:

  • Built-in MiniBeacon firmware
  • Built-in a 1000mAh CR2477 coin battery
  • Bluetooth low energy technology compatible
  • Excellent link budget (up to 97dB)
  • Enable long range applications
  • Accurate digital RSSI
  • Compatible with CE and FCC regulation
  • High performance and low power 8051 core MCU
  • Temperature sensor
  • Full speed USB interface
  • AES security coprocessor



How to change and modify the settings:

  • A spcial APP source code for developer using (see datasheet)
  • LightBlue for user (see datasheet)



How to upgrade the firmware via OAD

  • Please refer to the documents provided by MINEW



iBeacon Installation Guide

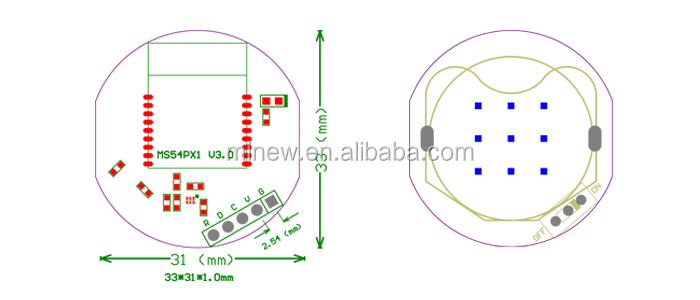

PCB Drawing





Package Picture
