indoor location advertisements broadcaster nRF51822 chipset CE and FCC certificated bluetooth beacon ble beacon

FOB Reference Price:Get Latest Price
US $1-8 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Minew
Model Number:
i4
Battery type:
1000mAH CR2477 coin battery
Based on:
Nordic nRF51822 chipset
Color:
pink, white, green
Operation voltage:
2.0-3.6Vdc
Operation system:
iOS 7.0 and Android 4.3
OEM/ODM service:
Acceptable
Certificate:
CE/FCC/EPL/RoHS
Accessories:
3M back sticker
Compatible devices:
iPhone 4S/ 5 / 5S / 5C, iPad Mini / iPad 3rd/4th gen, Android 4.3
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
standard paper package box.
Port
Shenzhen
Lead Time :
within 12 hours for samples shipment.

indoor location advertisements broadcaster nRF51822 chipset CE and FCC certificated bluetooth beacon ble beacon



1.  indoor location advertisements broadcaster nRF51822 chipset CE and FCC certificated bluetooth beacon ble beacon

2.  CE FCC certified indoor location advertisements bluetooth ibeacon

3.  Application in Supermarket, Shopping Center, Museum, Exhibition and Various Solutions
4.  Low cost and high quality and fast delivery

5.  iBeacon hardware manufacturer located in Shenzhen, China






iBeacon parameters



Item

Value

Remarks

Firmware

BLE4.0 Stack

V1.4x

Transmisson Circuit

10.5mA ( Max. )

Tested at 0dBm transmission power

Battery Model

CR2477

1000mAh,Coin battery, 3.0Vdc, 1pc

Operation Voltage

1.8-3.6V

DC

Operation Frequency

2400-2483.5MHz

Programmable

Frequency Error

+/- 20KHz

Null

Modulation

Q-QPSK

Null

Standby Current

50uA (average)

Depends on duty cycle / broadcasting cycle

Broadcasting Cycle

900mS

Duty cycle / Advertising interval

Output Power

0 dBm

Default setting, programmable

Size

Ø36 x 16 mm

Null

Transmission Distance

100 meters

BER<0.1%, Open space

Antenna

50ohm

On board / PCB Antenna

OTA

Supported upgraded via Over-The-Air

Null

Net Weight

21.0g

Including the battery but without packing

Color

White, pink and green

Other colors could be customized



ibeacon



iBeacon features





> iBeacon operate with high quality CR2477 coin battery, lasting one year battery lifetime:

CR2477 battery powered iBeacon

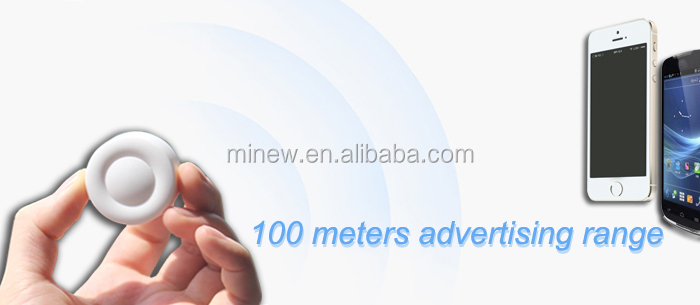

  > iBeacon long advertising range achieve 100 meters in open space, compatible with iOS 7.0 above system and Android 4.3 above system mobile devices:

range

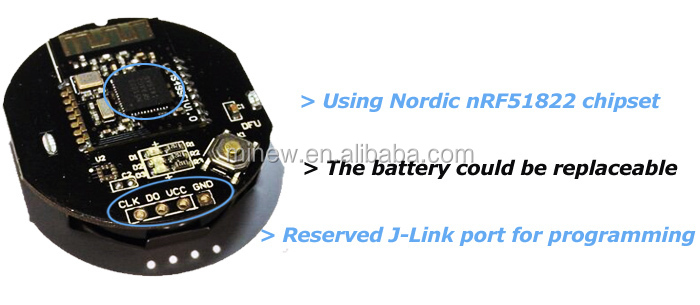

> Using Nordic nRF51822 chipset for saving more power consumption

   The battery could be replaceable

   Reserved J-Link port to on the borard for programming

ibeacon module



> When iBeacon turn on, Blue LED lights indicator will light 5 seconds then stop, When iBeacon battery level lower than 2.3V, Red LED lighting indicator will light every 5 seconds for reminding you to change the battery, Easy to get the real-time battery level notification





> Security



- 8 characters password ( Lock/Unlock parameters )



- Boradcast the encrypted data



- AES HW encryption





> Mounting by 3M branded high-strength adhesive



>  Minew can make the beacon looks more beautiful with your logo

ibeacon logo sticker



iBeacon Testing



 iBeacon Testing Support:

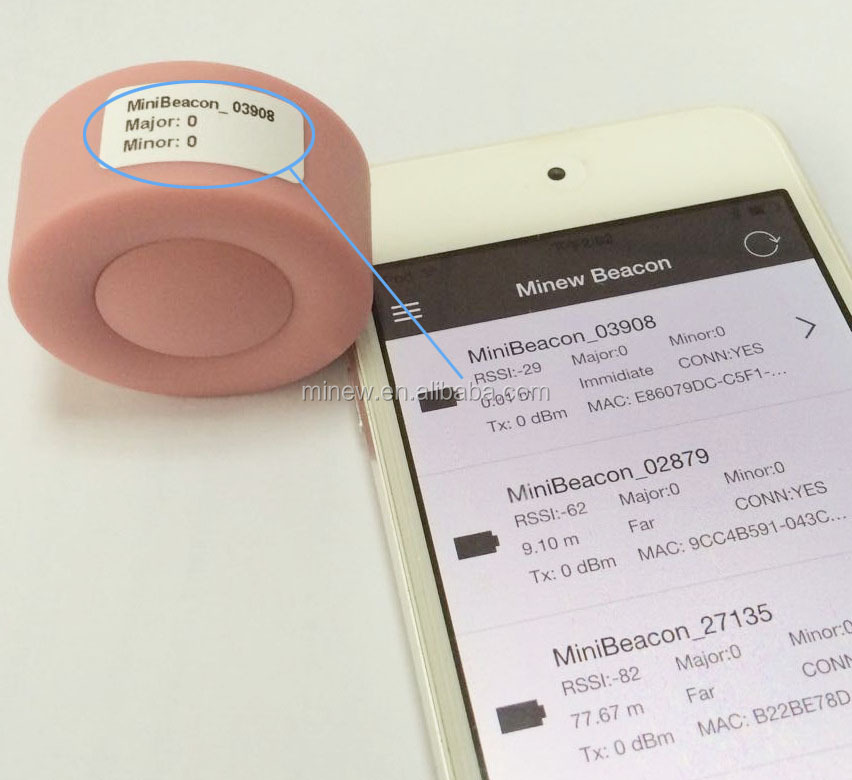

>  Download " BeaconCFG" from App Store or Download " iBeaconCFG " in Google Play.

testing

> UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID, iBeacon name, Connection Mode all could be configured by our special configuration app.

iBeaconCFG

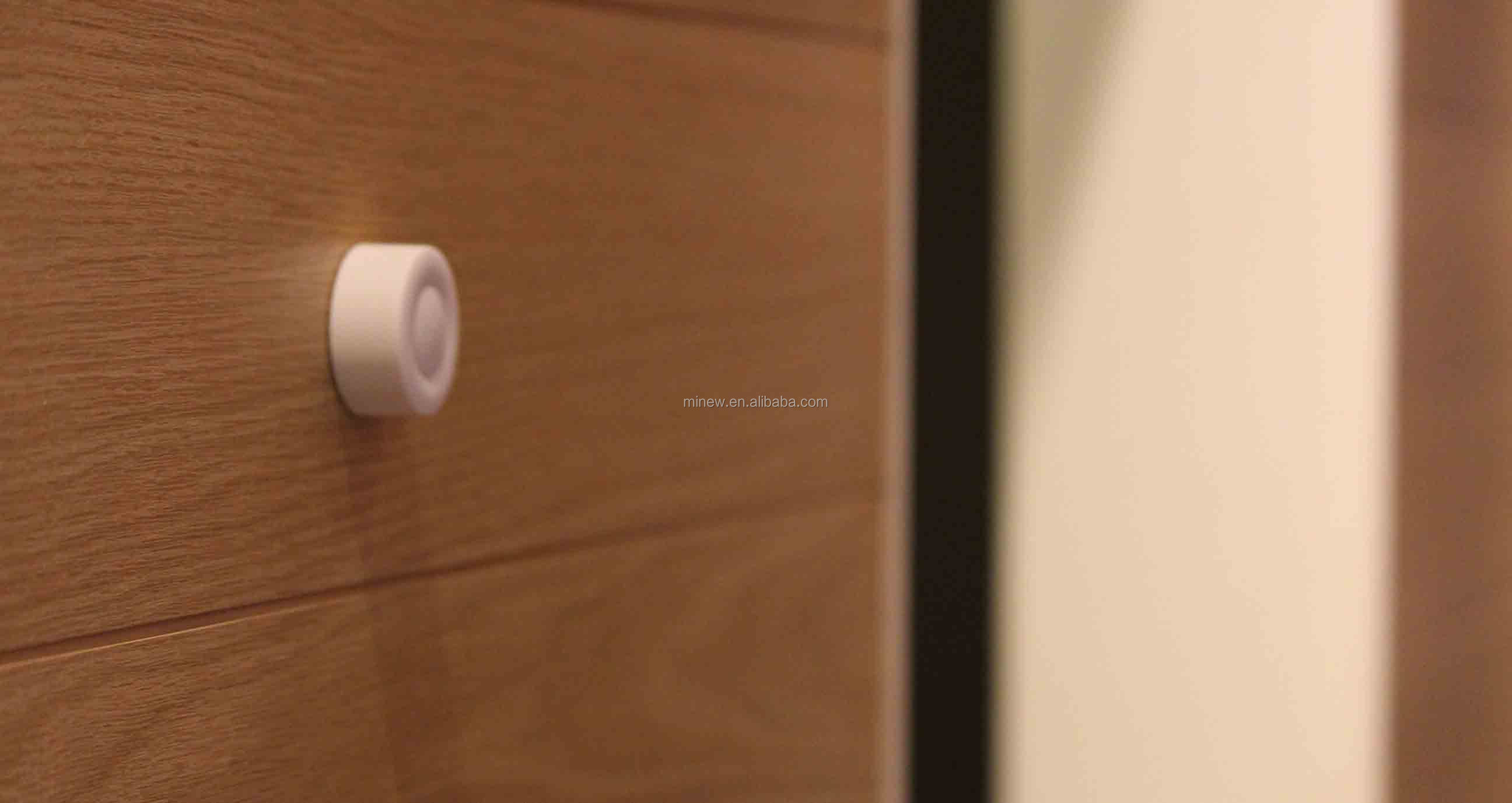

Bluetooth ibeacon show:

                             DSC01172.jpg                                                                     DSC_2760.jpg                                                         IMG_0700







Similar iBeacon





ibeacon sticker

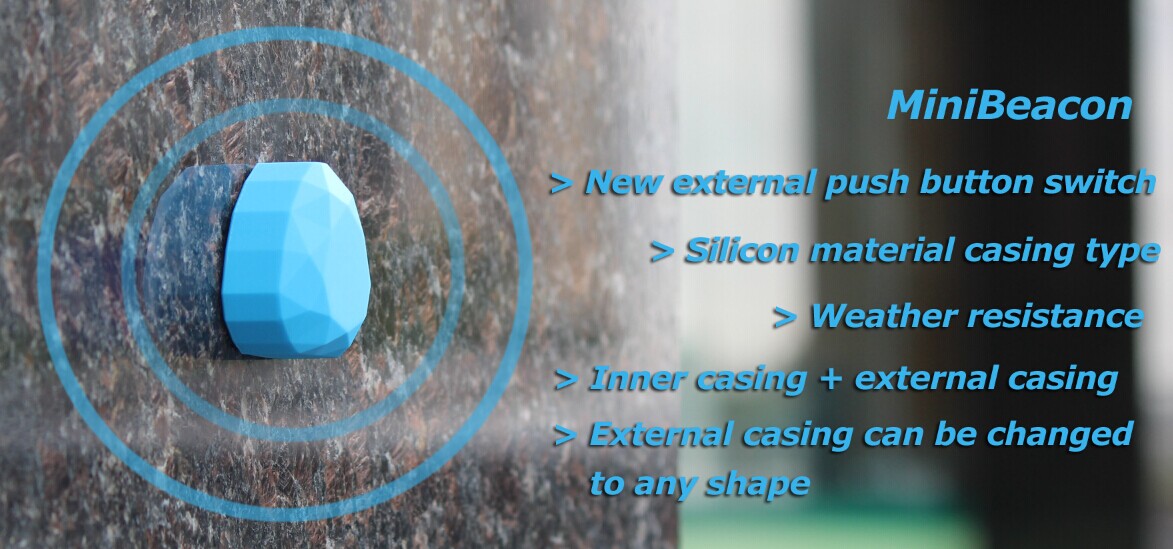

iBeacon new

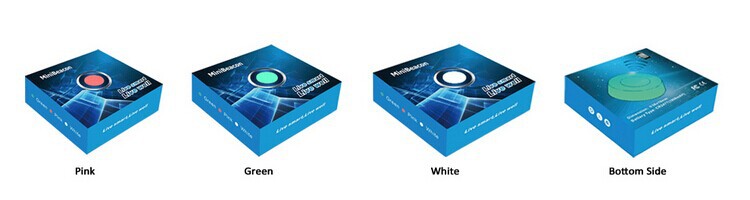

iBeacon package



QQ20140826170850
