Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Minew
  • Model Number: i5
  • Battery type: 2pcs CR2477 / 2-3 years battery lifetime
  • Chipset: Nordic nRF51822
  • Standard Color: black and white
  • Operation voltage: 2.0-3.6Vdc
  • Operation system: iOS 7.0+ and Android 4.3+
  • Packaging Details: Standard paper box package
  • Certification: CE/FCC/BQB EPL/RoHS
  • OEM/ODM: Acceptable

Packaging & Delivery

Packaging Details: standard paper package box.
Delivery Detail: within 48 hours for samples.

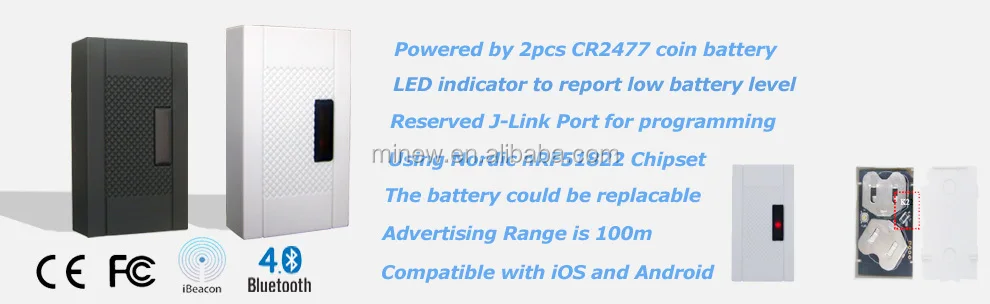

Eddystone Beacon with Nordic nRF51822 bluetooth beacon low energy module iBeacon proximity sensor



1.Eddystone Beacon with Nordic nRF51822 bluetooth beacon low energy module iBeacon proximity sensor
2. Powered by double CR2477 coin battery, lasting 2-3 years battery liftetime

3. Includes LED indication window for reminding switching on/off and low battery level

4. Logo could be printed on the casing

5. ISO9001:2008 Certified Manufacturer, high quality and fast delivery





iBeacon parameters



ItemValueRemarks
ChipsetnRF51822From Nordic
Battery Model2 x CR2477Coin battery, 1000mAH, 3.0V
Operate Voltage1.8V-3.6VDC
Transmisson Circuit10.5mA ( Max. )Tested at 0dBm transmission power
Transmisson Range100 metersMax value in open space measurement
Antenna50ohmOn board / PCB Antenna
AccessoriesDouble Adhesive3M high-strength adhesive
Net Weight39.0gwith 2pcs batteries but without package box
Size60x36x15mmNull
Case AvailableBlack and White

Other colors could be customized



Product Description



- Built-in MiniBeacon firmware

-  2-3 years battery lifetime

- The battery could be replaceable

-  Using nRF51822 chipset Bluetooth low energy 4.0 modules



Support iOS7.0 and Android 4.3 above version



- Built-in configuration password to prevent others to modify the settings



- Reserved J-Link port for customized other application firmware



- High quality casing, logo can be printed on it



- With key switch to save power consumption



CE/FCC/ EPL Approvals



- 100 meters advertising range



- LED lighiting indicator to report switch on/off and low battery level



- Reserved J-Link port on the board for programming new firmware



- Accurate digital RSSI



- Supported OTA upgrade



iBeacon Testing



iBeacon Testing Support:

Download " BeaconCFG" from App Store or Download " iBeaconCFG " in Google Play.





> UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID, iBeacon name, Connection Mode all could be configured by our special configuration app.

Our Services



 High Quality casing printed the logo for example:



iBeacon package



Similar iBeacon







Company Information



  Shenzhen Minew Technologies Co., Ltd is an ISO9001:2008 Management System CertifiedManufacturerlocated in Shenzhen, China. Professional specialized in developing the Bluetooth iBeacon, Bluetooth modules, key-finder and other RF Technology-based creative products and technical services. At present, we have launched lots of various and steady performance ibeacon products, our manufacturer has established 6 production lines for manufacturing iBeacon hardwareproducts, We are Minew Technologies, Your most Reliable Partner.
