Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: i1
  • Case: IP66 waterproof case
  • Supply System: IOS 7.0 and Android 4.3 above
  • Certification: CE , FCC and Apple certified
  • Battery model: CR2477 coin battery (1000mAH)
  • Service: Supply OEM/ODM
  • Color: Silver gray, Black
  • Operation voltage: 2.0 - 3.6Vdc
  • Frequency: 2.4Ghz

Packaging & Delivery

Packaging Details Standard package
Delivery Time 3 - 7 working days

2015 hot selling China Low Cost outdoor Positioning System nRF51822 ble bluetooth waterproof iBeacon---Welcome OEM

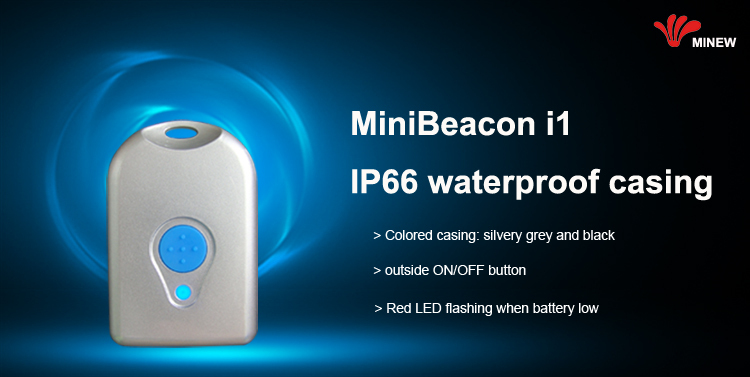

- The MiniBeacon i1 is IP66 waterproof ibeacon with ARM core chipset nRF51822 and leverage BLE 4.0 technology;

 MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.







Product Description



FEATURES



- Programmed MiniBeacon standard firmware

- Included 1pc 1000mAH coin battery

- The max. 100 meters advertising distance

- Ultra-low power consumption chipset nRF51822 with ARM core

- IP66 waterproof casing





Item

Value

Remarks

Case Color

Silvery grey, Black

Other colors can be customized

Battery Model

1 x CR2477

1pc CR2477 coin battery, 1000mAH, 3.0V

Operation Voltage

1.8-3.6V

DC

Transmission Circuit

10.5mA(Max.)

Tested at 0dBm transmission power

Transmission Range

100 meters

Maximum

Antenna

50ohm

On board / PCB Antenna

Accessories

Adhesive

1pc, high-strength, 3M brand

Net Weight

31.0g

Including the battery but without package box

Size

61 x 39 x 15mm

Null





Feature & Advantage

NORDIC CHIPSET ADVANTAGE:



Configurable Parameters

- UUID, Major, Minor Device name, Password etc.

-  Special Configuration APP;



Long battery Lifetime and Battery Level

- 12 months, with default settings.

- LED will  be flashing when battery low.

- Easy to get the real-time battery level notification;



Transmission Power Levels

- 8 adjustable levels, range from 0 to 7.

- Transmission power range: -30dBm to +4dBm;



Security

- 8 characters password(Lock/Unlock parameters).

- Broadcast the encrypted data.

- AES HW encrytion;



OTA and J-Link

- Supported upgrade via Over-The-Air.

- Reserved J-Link port on the board for programming.





SIMILAR PRODUCT:





Special Config APP



After the sample arrived, we will provide you the SDK (iOS and Android) to help you to complete your own APP development quick to market.

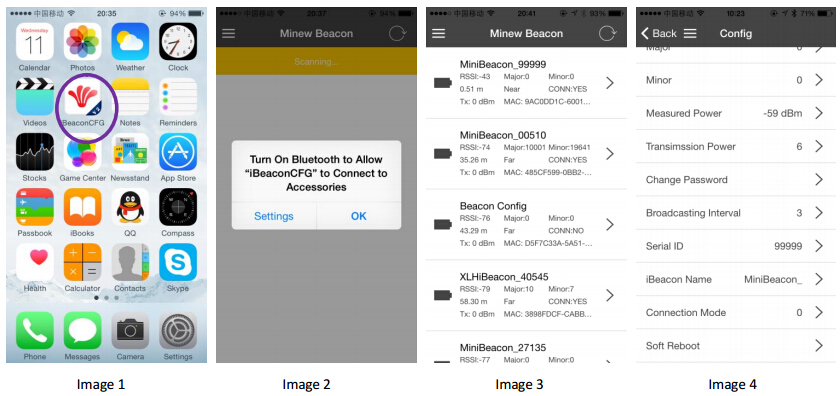

What's more, we will provide the configuration APP (iOS and Android) and instruction to you for the configuration beacons. Here below are the reference sceenshots of configuration APP.







Certifications



We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.

We only focusing on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.



Customized Service



- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service;
