Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Minew
  • Model Number: i3
  • Battery type: AA battery, exchangeable
  • UUID, Major, Minor: Configurable
  • Installation: 3M adhesive or screw
  • Standard Color: black
  • Operation system: iOS 7.0+ and Android 4.3+
  • Size: 72 x 45 x 22mm
  • Certifications: CE/FCC/RoHS
  • Based on: Nordic nRF51822 chipset
  • Services: OEM, ODM services
  • Firmware: Yes, include

Packaging & Delivery

Packaging Details: standard elegant package box. 2pcs/box
Delivery Detail: within 24 hours for samples shipment.

high gloss black 5 years battery lifetime nRF51822 iBeacon with logo printing compatible Eddystone



1.high gloss black 5 years battery lifetime nRF51822 iBeacon with logo printing compatible Eddystone

2.OEM ODM services acceptable

3. ISO9001:2008 Certified Manufacturer located in Shenzhen, China

New Designed AA battery iBeacon by Minew Team:

iBeacon parameters



ItemValueRemarks
ChipsetnRF51822From Nordic
Battery Model2xAA battery2pcs Alkaline battery, 2500mAH, 3.0V
Operate Voltage1.8V-3.6VDC
Transmisson Circuit10.5mA ( Max. )Tested at 0dBm transmission power
Transmisson Range200 metersMax value in open space measurement
Antenna50ohmOn board / PCB Antenna
AccessoriesDouble Adhesive and Screws3M high-strength adhesive and 2pcs screws
Net Weight50.0gwithout battery and package box
Size72x45x22mmNull
Case AvailableWhite, pink and green

Other colors could be customized







Product Description



- Built-in MiniBeacon firmware

-  Over5 years battery lifetime

- The battery could be replaceable

-  Using nRF51822 chipset Bluetooth low energy 4.0 modules



Support iOS7.0 and Android 4.3 above version



Built-in configuration password to prevent others to modify the settings



Reserved J-Link port for customized other application firmware



High quality casing, logo can be printed on it



CE/FCC Certificates



- 200 meters advertising range



- LED lighiting indicator to report switch on/off and low battery level



- Reserved J-Link port on the board for programming new firmware



Accurate digital RSSI



- Supported OTA upgrade





- 8 characters password ( Lock/Unlock parameters )



- Boradcast the encrypted data



- AES HW encryption









Similar iBeacon







iBeacon Testing





iBeacon Testing Support:

> Download " iBeaconCFG" from App Store or Google Play.

> UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID, iBeacon name, Connection Mode all could be configured by our special configuration app.



iBeacon features

>AA battery iBeacon installation ways:



>Customized and create your new ibeacon casing:

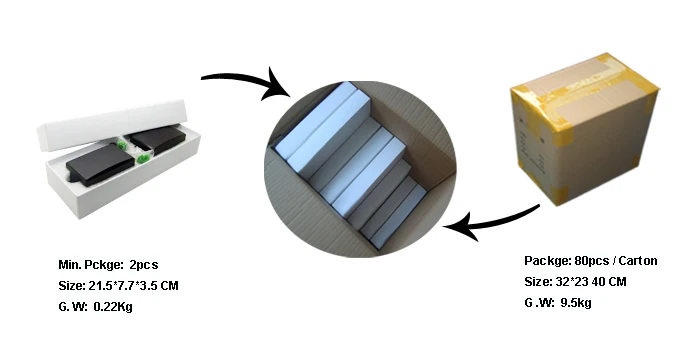

iBeacon package

 iBeacon packages information for delivery as below:

- Min.Package: 2pcs

- Qty of Carton: 80pcs

- Carton Size: 32 X 23 X 40 CM

- Gross Weight of a Carton: 9.50 KGS


Minew Teamwork



> Minew Team will responses all your questions immediately

>  Minew Team wants to be your long-term business partner
