Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Minew
  • Model Number: i5
  • Service: OEM/ODM
  • Supply System: iOS 7.0 and Android 4.3 above
  • Battery model: CR2477 coin battery
  • Battery capacity: 2000mAH
  • Based on: Nordic nRF51822
  • Certification: CE/FCC/BQB EPL Approvals
  • Transmission Range: 100m
  • Operation Voltage: 1.8 - 3.6V
  • Frequency: 2.4Ghz

Packaging & Delivery

Packaging Details Packaging Details: Standard package
Delivery Time Within 48 hrs for samples shipment

Nordic nRF51822 ibeacon compatible with iOS and android mobile app ibeacom, ibeacon ble beacon



1.  Nordic nRF51822 ibeacon compatible with iOS and android mobile app ibeacom, ibeacon ble beacon
2. Long battery lifetime
3. Compatible with iOS and android



Product Description

 > 2-3 years battery life time

> Built-in MiniBeacon firmware, based on nRF51822 ARM core shipset

> Support both iOS7.0 and Android 4.3 above system

> The max. 100 meters advertising distance

> Replaceable 2000mAH CR2477 coin battery

> Supported upgrade via Over-The-Air

> Reserved J-Link port on the board for programming

> CE/FCC/BQB EPL Approvals





Item

Value

Remarks

Case Color

Black, white

Other colors can be customized

Battery Model

2 x CR2477

2pcs CR2477 coin batteries, 2000mAH, 3.0V

Operation Voltage

1.8-3.6V

DC

Transmission Circuit

10.5mA(Max.)

Tested at 0dBm transmission power

Transmission Range

100 meters

Maximum

Antenna

50ohm

On board / PCB Antenna

Accessories

Double adhesive

1pc, high-strength, 3M brand

Net Weight

39.0g

With 2pcs batteries but without package

Size

60 x 36 x 15 mm

Null

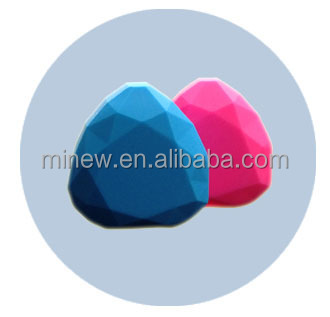

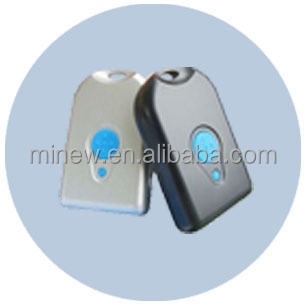

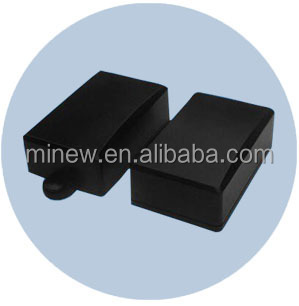

Similar Beacons









Features & Advantage

 > Double-battery, 2-3 battery lifetime

> UUID, Major, Minor, etc can be changed by our own configure app

> Long Battery life time, Low battery noticed

> 8 adjustable levels, transmission power range from -30dBm to +4dBM

> The max. Range up to 100 meters, in open space

> Reboot the device via command without any tools

> 8 characters password(Lock/Unlock parameters)





Configuration APP



After the sample arrived, we will provide you the SDK (iOS and Android) to help you to complete your own APP development quick to market.

What's more, we will provide the configuration APP (iOS and Android) and instruction to you for the configuration beacons. Here below are the reference sceenshots of configuration APP.





Company Information



We are Shenzhen Minew Technologies Co. Ltd. has been focusing on developing and manufacturing



iBeacon, bluetooth key finder and other RF technology-based creative products and technical services.



As a professional factory, Minew has got the ISO9001: 2008 certifacation.



As the largest iBeacon players in China, Minew has got the MFi iBeacon license successfully, also our all of products have been approved by CE/FCC/RoHs and Bluetooth QDID/EPL certifications.

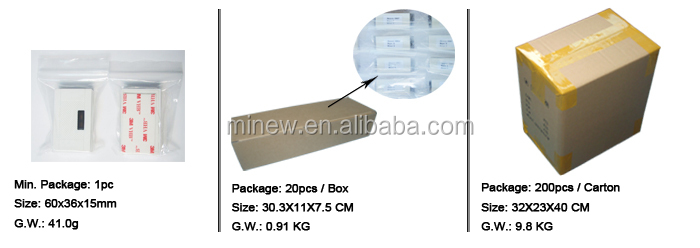

Packaging & Shipping



> Items per Carton: 200 Pieces / Carton

> Package Measurements: 32X23X40 CM

> Gross Weight: 9.8 KG

> Package Size per Unit: NULL

> Gross Weight per Unit: 41.0 G / Piece

> Package Type: Standard PE Bag
