bluetooth 4.0 Ibeacon Module with rechargeable battery

FOB Reference Price:Get Latest Price
US $1-10 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
i8
Chipest:
Nordic nRF51822 BLE 4.0 module
The Max.Range:
100 meters
System:
iOS 7.0 and Android 4.3 above
Certification::
CE, FCC certified and Apple Licensed
Service:
Supply OEM/ODM
Material:
Soft silicon rubber, Weather-proof
Battery:
1000mAH battery, replaceable
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Week
Packaging & Delivery

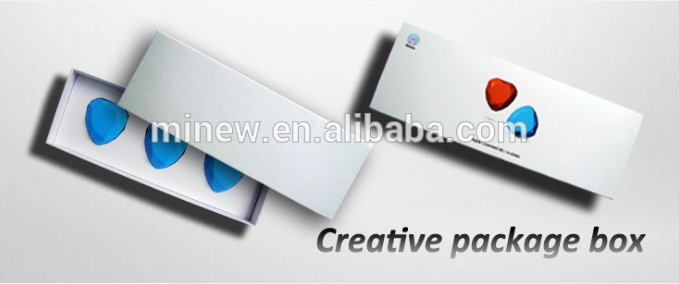

Packaging Details
Standard Paper Box
Port
Shenzhen
Lead Time :
3 to 5 days

bluetooth 4.0 Ibeacon Module with rechargeable battery

- The diamond MiniBeacon i8 is modern and stylish iBeacon with AEM core chipset nRF51822 and leverage BLE 4.0 technology;

-  MiniBeacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.



Product Description



FEATURES



- Programmed MiniBeacon standard firmware

- Included 1pc 1000mAH coin battery, replaceable

- The max. 100 meters advertising distance

- Ultra-low power consumption chipset nRF51822 with ARM core

- External hidden ON/OFF button

- Weather-proof case suitable for outdoor application



-1

QQ20150113170359

Item

Value

Remarks

Case Color

Blue, Pink

Other colors can be customized

Battery Model

1 x CR2477

1pc CR2477 coin battery, 1000mAH, 3.0V

Operation Voltage

1.8-3.6V

DC

Transmission Circuit

10.5mA(Max.)

Tested at 0dBm transmission power

Transmission Range

100 meters

Maximum

Antenna

50ohm

On board / PCB Antenna

Accessories

Adhesive

1pc, high-strength, 3M brand

Net Weight

35.0g

Including the battery but without package box

iBC08 Size

33 x 24 15mm

iBeacon Kernel, without silicon case

Size

43 x 43 x 21mm

With silicon case



Feature & Advantage



WHAT IS THE NORDIC CHIPSET?



Configurable Parameters

- UUID, Major, Minor Device name, Password etc.

-  Special Configuration APP;



Long battery Lifetime and Battery Level

- 12 months, with default settings.

- LED will  be flashing when battery low.

- Easy to get the real-time battery level notification;



Transmission Power Levels

- 8 adjustable levels, range from 0 to 7.

- Transmission power range: -30dBm to +4dBm;



Security

- 8 characters password(Lock/Unlock parameters).

- Broadcast the encrypted data.

- AES HW encrytion;



OTA and J-Link

- Supported upgrade via Over-The-Air.

- Reserved J-Link port on the board for programming.



Special Config APP



After the sample arrived, we will provide you the SDK (iOS and Android) to help you to complete your own APP development quick to market.

What's more, we will provide the configuration APP (iOS and Android) and instruction to you for the configuration beacons. Here below are the reference sceenshots of configuration APP.



iBeaconCFG





Similar Products



QQ20150323115613_01.jpgQQ20150323115613_02.jpgQQ20150323115613_03.jpgQQ20150323115613_04.jpgQQ20150323115613_05.jpg



Customized Service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.



QQ20150227115639



Certifications



We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.

We only focusing on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.

QQ20150227115608
