SDK for IOS and Android nRF51822 ble module ibeacon minew &Mini ibeacon

FOB Reference Price:Get Latest Price
$1.00 - $12.00 / Pieces | 3 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Model Number:
i3
Brand Name:
Minew
Place of Origin:
Guangdong, China
Battery Model:
2 x AA
Operation Voltage:
1.8-3.6V
Transmission Range:
200 meters
Transmission Circuit:
10.5mA (Max.)
Antenna:
50ohm
Accessories:
Adhesive
Net Weight:
50.0g
Size:
ibeacon minew 72x45x22 mm
Transmission power range::
-30dBm to +4dBm;
Compatibility:
iOS 7.0+ and Android 4.3+ system;
Product Certification Verified
CE Certified.
FCC Certified.
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month ibeacon minew
Packaging & Delivery
Packaging Details
Paper Box
ibeacon minew
Port
Shenzhen

SDK for IOS and Android  nRF51822 ble module ibeacon minew &Mini ibeacon

Product Description

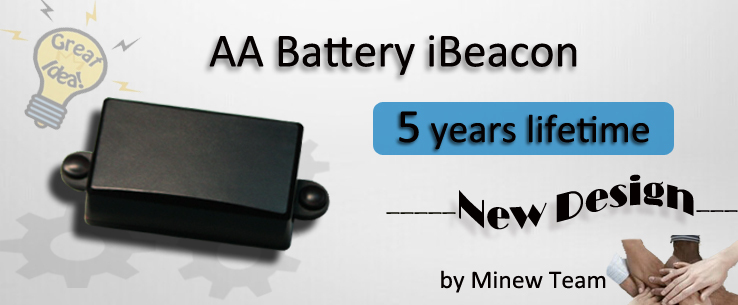

  ibeacon minew   is a very popular and modern iBeacon with ARM core chipset  nRF51822 and  leverage  BLE  4.0 technology;  it  has  a  soft-touch  round case,  accurate  hardware and robust firmware.

  ibeacon minew is  designed  for  the  commercial  advertising and indoor location-based service.

ibeacon minew   can be  heard and  interpreted by iOS and Android  BLE-enabled  devices that are equipped with many mobile apps.

ItemValue Remarks
Firmware                                 BLE 4.0 Stack                                     V1.4x
Battery Model                   2xAA1000mAh, 3.0V
Operation Voltage 1.8-3.6V DC
Transmission Circuit 10.5mA (Max.) Tested at 0dBm transmission power
Transmission Range 200 meters Maximum
Antenna 50ohm On board / PCB Antenna
Accessories Adhesive 1pc, high-strength, 3M brand
Output Power 0 dBm Default setting, programmable

Compatibility

- Supported iOS 7.0+ and Android 4.3+ system; - Compatible with Apple iBeaconTM standard; - Compatible with all Bluetooth 4.0 (BLE) devices;

 Long Battery Lifetime and Battery Level

 - 5 years, with the default settings;

- LED will be flashing when battery low;

- Easy to get the real-time battery level notification;

Soft-reboot

- Reboot the device via command without any tools;

OTA and J-Link

- Supported upgrade via Over-The-Air;

- Reserved J-Link port on the board for programming; Connection Mode

 - Advertising mode, non-connectable;









Simialr products



Packaging & Shipping







Our Services

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Company Information

Shenzhen Minew Technologies Co., Ltd. (Minew for short) has been focusing on developing and manufacturing iBeacon, bluetooth key finder and other RF technology-based creative products and technical services.
As a professional factory, Minew has got the ISO9001:2008 certification.
