Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Minew
  • Model Number: C1
  • Compatibility: iOS 7.0+ and Android 4.3+ system;
  • Battery Model: 2 x AAA
  • Operation Voltage: 1.8-3.6V
  • Transmission Circuit: 10.5mA (Max.)
  • Transmission Range: 150 meters
  • Antenna: 50ohm
  • Accessories: Adhesive
  • Net Weight: 21g
  • Size: long range ibeacon 60x60x16mm
  • Brand: ibeacon Minew

Packaging & Delivery

Packaging Details long range ibeacon
1pc packed into platic bag
Delivery Time within 24hours after received payment

BLE eddystone AAA battery powered long range ibeacon

long range ibeacon is a very popular and modern iBeacon with ARM core chipset  nRF51822 and leverage  BLE  4.0 technology;  it  has  a  soft-touch  round case,  accurate  hardware and robust firmware.

long range ibeacon  is  designed  for  the  commercial  advertising and indoor location-based service.

long range ibeacon can be  heard and  interpreted by iOS and Android  BLE-enabled  devices that are equipped with many mobile apps.



ItemValue Remarks
Firmware                                 BLE 4.0 Stack                                     V1.4x
Battery Model                      2xAAA1000mAh, 3.0V
Operation Voltage 1.8-3.6V DC
Transmission Circuit 10.5mA (Max.) Tested at 0dBm    transmission power
Transmission Range 150 meters Maximum
Antenna 50ohm On board / PCB Antenna
Accessories Adhesive 1pc, high-strength, 3M brand
Net Weight 21.0g With battery but without package
Size  60x60x16 mm Null
Output Power 0 dBm Default setting, programmable
i4 ELECTRONIC PARAMETERS
ItemValueRemarks
Firmware                                BLE 4.0 Stack                                    V1.4x
Battery Model                     1xCR24771000mAh, 3.0V
Operation Voltage1.8-3.6VDC
Transmission Circuit10.5mA (Max.)Tested at 0dBm    transmission power
Transmission Range100 metersMaximum
Antenna50ohmOn board / PCB Antenna
AccessoriesAdhesive1pc, high-strength, 3M brand
Net Weight21.0gWith battery but without package
Size 36X36x16 mmNull
Output Power0 dBmDefault setting, programmable



Configurable Parameters

 - UUID, Major, Minor, Device Name, Password etc.

 - Special Configuration APP;

Transmission Power Levels

- 8 adjustable levels, range from 0 to 7

 - Transmission power range:

 -30dBm to +4dBm;

Long Range

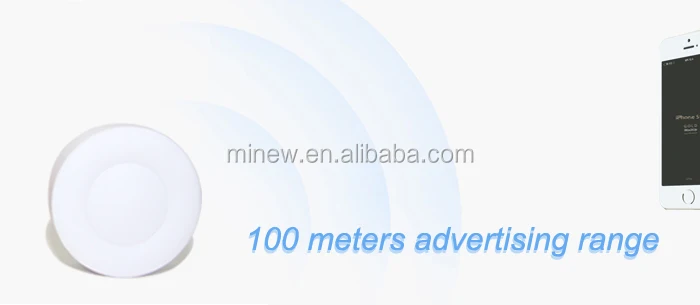

- The max. Range 100 meters in the open space;

 - The range depends on the physical environment;

Security

 - 8 characters password (Lock/Unlock parameters);

- Broadcast the encrypted data;

 - AES HW encryption

Mounting

- 3M branded adhesive for direct mounting to wall;



Simialr products
Advantages


FAQ

Do you have configure app and instruction?

Yes,we will provide you after you buy our sample.

Can I change the password?

Yes,you can change what you want to set.

Do you have SDK or the source code?

Yes,we will provide you after sample was arrived.

How to upgrade the firmware via over-the-air?

Pls refer to the file "OAD instructions.pdf".Minew sales will provide you the document.

Does MiniBeacon comply with Apple's iBeacon standard?

Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582.

Any other more questions,pls contact us to know more.
