Wireless Location Devices for iOS and Android E2 Minew

FOB Reference Price:Get Latest Price
  • 3 - 99 Pieces
    US $16.00
  • >=100 Pieces
    US $15.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Minew
Model Number:
E2
Protocol:
iBeacon and Eddystone compatible
Transmission range:
984ft-1640ft
Chipset:
Nordic Nrf52832/nRF52810
Sensor Optional:
accelerometer sensor
Certification:
CE ROHS FCC Approval
OEM/ODM:
Yes
Support:
iOS 7.0 and Android 4.3 above
IP Grade:
IP67 waterproof
Configuration app:
Beaconset+
SupplyAbility
SupplyAbility:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
bulk package
Port
Shenzhen
Lead Time :
5-7 working days
Product Description

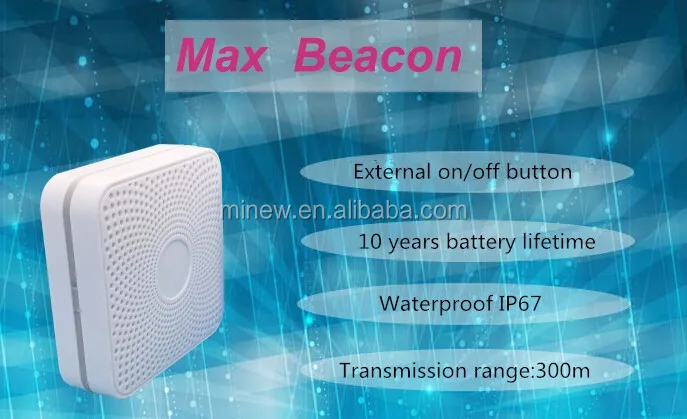

1. Ultra-low power consumption chipset nRF52810/nRF52832 with ARM core
2. Leverage 4PCS Li-S2 AA battery, the battery life time can reach 10 years
3. The max. 300-500 meters(984ft-1640ft) advertising distance.
4. IP67 waterproof can be used in outdoor application
5. iBeacon&Eddystone compatible working at the same time
6. UUID, Major, Minor, Pairing Password and other parameters can be changed by custome.

Product Parameters
Item
Value
Remarks
Case Color
white
Other colors can be customized
Battery Model
4 x AA
4pcs AA battery
Operation Voltage
1.8-3.6V
DC
Transmission Circuit
10.5mA(Max.)
Tested at 0dBm transmission power
Transmission Range
300-500 meters
Maximum
Antenna
50ohm
On board / PCB Antenna
Accessories
Double adhesive/Screws
1pc, high-strength, 3M brand
2pcs screws and 2pcs plastic holders
Net Weight
90.0g
With battery but without package
Size
72 x 72 x 22.9 mm
Null
Compatibility
 iOS 7.0+ and Android 4.3+ system
Apple iBeacon TM standard / all Bluetooth 4.0 (BLE) devices
How to use it

How to use E2 Eddystone Max Beacon for Proximity Marketing

The Physical Web enables you to discover web pages associated with everyday objects and locations. It is powered by Bluetooth low energy (BLE) beacons that broadcast URLs using the Eddystone format. Various mobile browsers are working to display these URLs. This document explains how to use Minew Eddystone to perform the Physical Web onChrome.
Firstly, please load the URL which you want to broadcast onto Eddystone beacon

Load the URL onto Eddystone beacon

If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Purchase an Eddystone certified beacon from https: //www.minewtech.com/eddystone.html

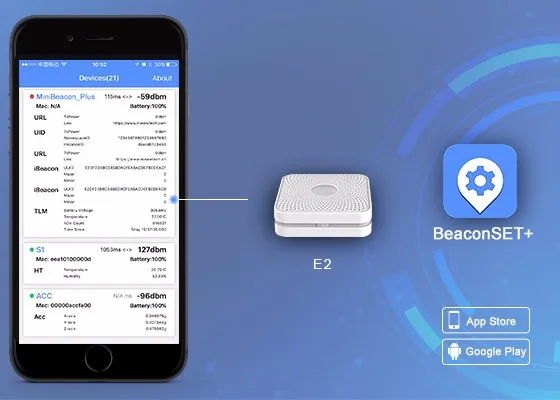

2. Download the beacon configuration app BeaconSET+ from Google Play or Apple store;
2.1 Open BeaconSET+, select the Eddystone beacon with MAC abcde40301aa;
2.2 Click the device icon, select the SLOT 3 (URL), and enter the URL (http://www.minewtech.com ), then Click'Save' to save the changes as below image

3. Open the configuration app BeaconSET+ and connect to your nearby beacon. Choose a URL to enter in theEddystone URL field. Note that the standard URL length can only be 18 bytes
4. That's it! Your beacon is now broadcasting URLs that can be discovered by Physical Web-supported browsers such as Chrome

For more details, please contact Minew team. Skype: sara.Minew

Similar Products

i7 Accelerometer Beacon.

iBeacon Factory Price support eddystone Beacon Accelerometer

F3 Key finder.

Key Finder,Bluetooth Anti-lost Tracker Two Way Alarm Durable Use

i6 Sticker Beacon.

Original Factory OEM Beacon also support ODM with 3.3mm thickness

Certifications

APPLE iBeacon MFi certification, BQB/FCC/CE certification Approved by the Ministry of industry and Information Technology of P.R China to ensure the use of legal and safe places of public places.

Customer Service

- Print your logo on the top of MiniBeacon;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Company Profile

We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We only focus on designed and manufactured many different high quality and low cost iBeacons hardware and one-stop services.
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembly.

Warmly welcome the OEM and ODM projects.

Do you have configure app and instruction?

Re: Yes,we will provide you after you buy our sample.

Can I change the password?

Re: Yes,you can change what you want to set.

Do you have SDK or the source code?

Re: Yes,we will provide you after sample was arrived.

How to upgrade the firmware via over-the-air?

Re: Pls refer to the file "OAD instructions.pdf".Minew sales will provide you the document.

Does MiniBeacon comply with Apple's iBeacon standard?

Re: Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582.

Any other more questions,pls contact us to know more.

RE: Skype: sara.minew
