Minew 1.54 inch BLE 5.0 wireless e-paper price display electronic shelf label NFC support

FOB Reference Price:Get Latest Price
$1.00 - $9.00 / Piece | 3 Piece/Pieces (Min. Order)
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Minew
Model Number:
MTag1501Y
Type:
Graphic
Product name:
BLE5.0 ESL
Technology:
Bluetooth5.0
Battery life:
5-7 Years
Application:
Grocery, Drug store, Wine
Size:
1.54 inch
Dimensions (mm):
36 x 44 x 14.2
Pixel colors:
Black/White/Yellow
Compliance:
CE, FCC, ROHS
Supply Ability
Supply Ability:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard package, Anti - ESD protection
Port
Shenzhen, HongKong
Lead Time :
Quantity(Pieces) 1 - 3 >3
Est. Time(days) 3 To be negotiated
Video Description

Product Description

Save some work!

Get some rest!

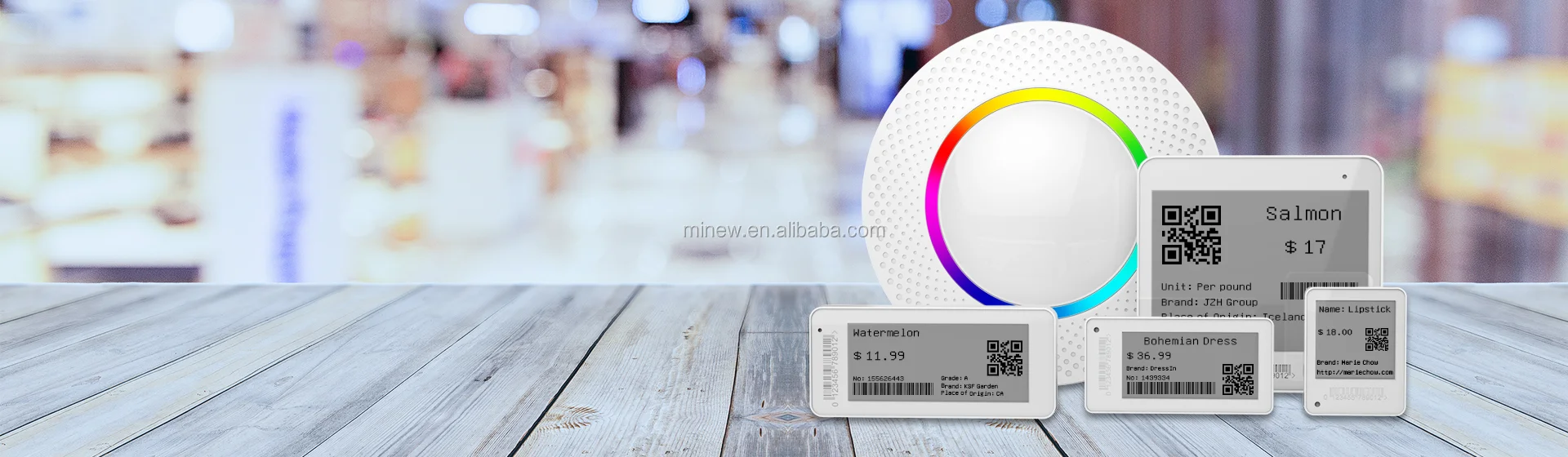

Say goodbye to traditional paper price tags with Minew MTag series!






Minew 1.54 inch BLE 5.0 wireless  e-paper price display electronic shelf label applied with the latest Bluetooth® 5.0 technology and the high-quality dot matrix E-ink display. They can works from 0 °C to 50 °C, and all have the ultra-low power consumption batteries living up to 5 years. Minew electronic shelf labels are easy to control and manage with the MTag series development kit. It will bring you a brand-new experience for smart retail.



Key Features

  •   Bluetooth® 5.0 technology
  •   Bi-directional wireless communication
  •   Nordic nRF-52 series
  •   High-quality dot matrix E-ink display
  •   Individually designed templates
  •   Multi-Language support
  •   QR code, Barcode, NFC for online and offline interactions
  •   Instant LED flashlight
  •   Working environment: 0 - 50
  •   Ultra-low power consumption, battery life up to 5 years
  •   IP 65 standards
  •   Faster refresh rate, only 10minutes refresh up to 50,000 pieces



Technical Details



Model Number

MTag1501Y

Size

1.54 inch

Dimensions (mm)

36 x 44 x 14.2

Weight (g)

21

Active display area (mm)

27.00 x 27.00

Resolution (pixels)

152 x 152

Pixel density

142 DPI

Pixel colors

Black/White/Yellow

Viewing angle

180°

 Communication method

Bluetooth® 5.0

Battery

CR2450 x 1

Battery lifetime

5 years

Operating temperature

0 °C to 50 °C

Storing temperature

- 20 °C to 70 °C

Compliance

CE, FCC, ROHS

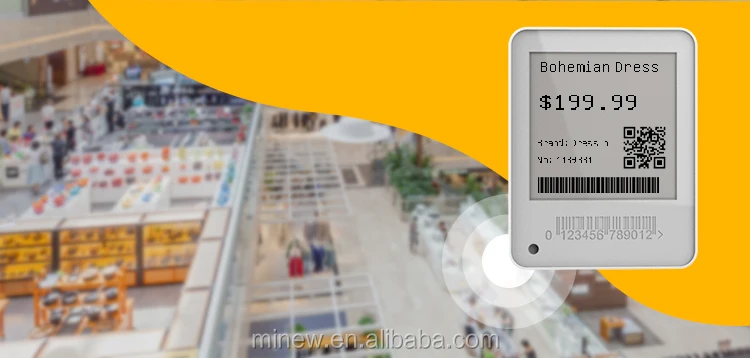

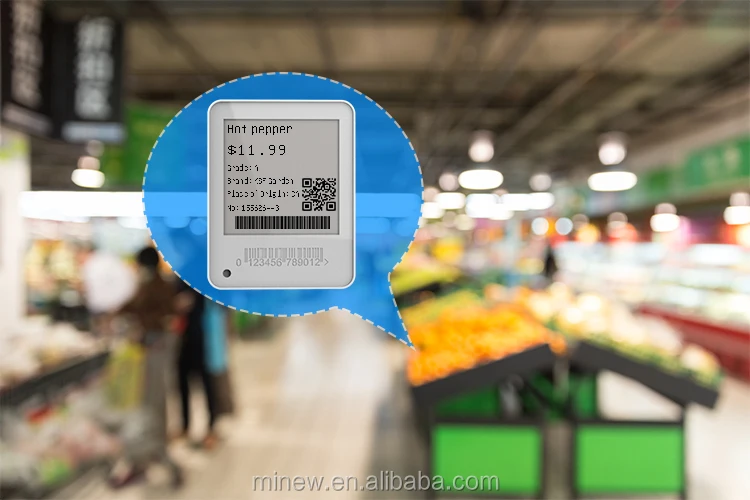

Applications

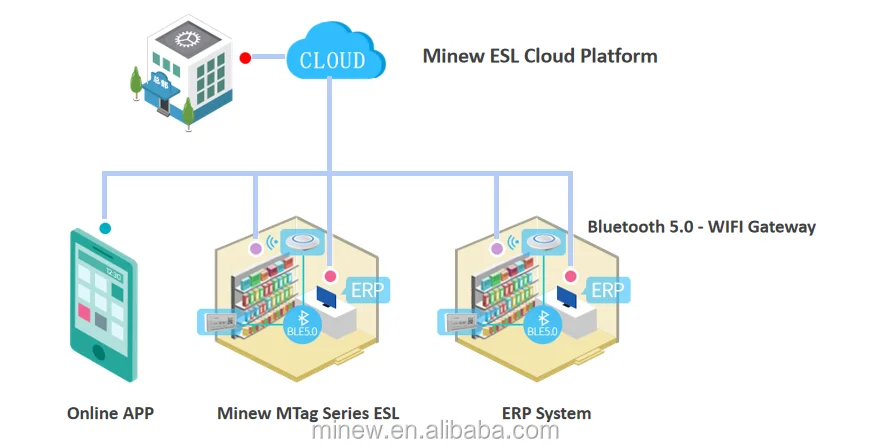

How It Works

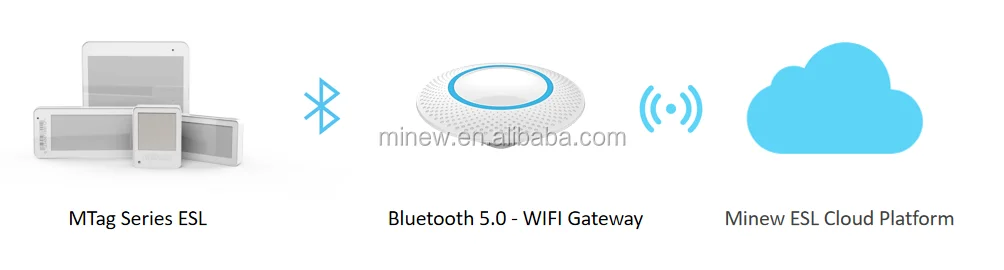

Minew has a complete smart retail solution. We provide to our customers with our own developed MTag series development kit. By connecting MTags with Minew Bluetooth® 5.0-WIFI Gateway, users can easily control the MTags of each store and receive store data feedback through the Minew ESL cloud platform.









Technical Support



√ SDK will be provided

√ After-sales services

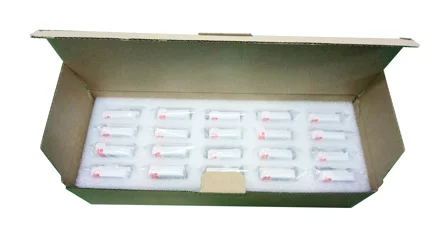

Packaging & Shipping
















Quantity

20 pieces

200 pieces

Net Weight

420 g

4.2 Kg

Gross weight

485 g

5.3 kg

Size (cm)

30.5 x 11 x 7.5

32 x 23.5 x 40





4



We ship worldwide!

shipping



Why Choose Us

  •   Famous high-tech brand
  •   Listed on NEEQ China
  •   Collaboration with a lot of Fortune 500 companies
  •   Verified by TÜV SÜD
  •   Factories certified by ISO 9001, ISO 14001, and OHSAS 18001
  •   Experienced R&D team
  •   Quick product launch
  •   Elevate your brand with reliable partners
  •   OEM/ODM service exporter for over 10 years
  •   Warranty service included



Company Information



Shenzhen Minew Technologies co., Ltd is a professional turnkey supplier which provide complete customized IoT solutions from concepts and ideas to the physical products. The company founded in 2007 has focused on R&D and innovations in IoT fields for more than 10 years, and always dedicated to providing customers with high standard IoT solutions, products, and services.



9

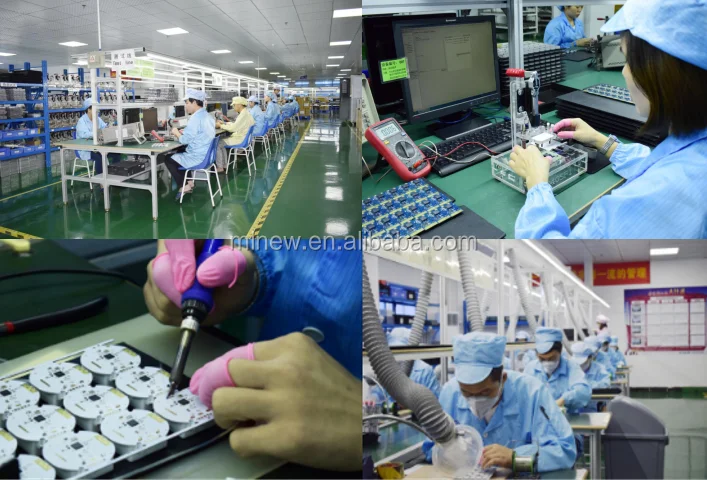

Manufacture

Minew has a quick-response manufacturing factory system to support all demands which has been certified by ISO 9001, ISO 14001, and OHSAS 18001, with daily output of 20,000 volume in producing smart products.
