nordic nrf52832 certificated mesh ble 5.0 module at direct factory price

FOB Reference Price:Get Latest Price
$1.99 - $4.55 / Piece | 3 Piece/Pieces (Min. Order)
Supplier Type:
Original manufacturer Odm
Shipping:
Support Express · Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Model Number:
MS50SFB3
Application:
smart devices
Country of Origin:
China
Brand:
Minew
Chipset:
ble 5.0 chipset
Frequency:
2.4G -2.483GHz
Max. Output power:
+4dbm
chipset:
nordic nrf52832
GPIO Quantity:
32
Module size:
20*12*2mm
Antenna Type:
IPEX terminal (ceramic antenna and PCB is optional)
Operating temperature range:
-25 to 85 degree Celsius
Range:
10- 60 meters
Certification:
BQB,FCC,CE,IC,TELEC,RCM,WPC,RoHS&Reach
communication protocol:
UART(Slave / Master optional)
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery

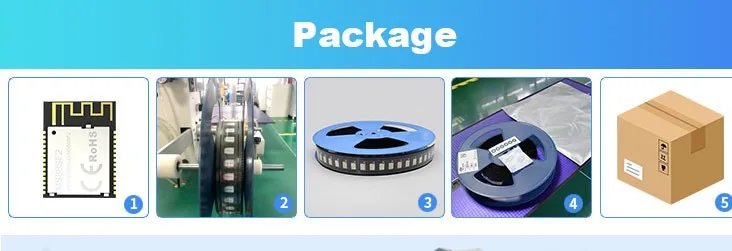

Packaging Details
roll package
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 3 To be negotiated
Certifications
Minew module can save your money up to US$8000
Certification is really important to your project. If there have only one transmitter and antenna in your product, the product that installed with Minew's module can reference Minew's ID directly. In terms of certification part, Minew can save your money up to US$8000
Products Description

--Powerful nRF52832 Module
--Programming UART communication protocol
--Full GPIO: 32
--3 kinds of antenna optional: PCB antenna, ceramic antenna and IPEX terminal.

The MS50SFB3 is a compact and small size Bluetooth 5.0 module with ultra-low power consumption and optional antenna types; The module has the large number of GPIOs and excellent RF performance. Therefore, it can apply to a wide range of Bluetooth connected products. With an ARM CortexTM M4(F) MCU, up to 512KB flash, 64KB RAM, embedded 2.4GHz, MS50SFB3 can save the R&D and time cost. The module is highly integrated that contains all the necessary components from radio to a different antenna and a completely implemented Bluetooth protocol stack and programming UART communication protocol.
Application
Feature
Frequency:
2400 to 2483 MHz
Max. Output power:
+4dBm
Single power supply:
1.8 – 3.9V
Range:
10-60m (BER<0.1%, open space)
Chip:
nRF52832 (Nordic)
GPIO Quantity:
32
Module size:
20 x 12x 2.0 mm
Operating temperature range:
-25 to 85 degree Celsius
512KB Flash and 64kB RAM
ARM Cortex-M4F processor
Metal shielding with marking
Supports NFC type A interface
50Ω IPEX antenna type
Support UART communication protocol.
Pin description

nordic nrf52832 certificated mesh ble 5.0 module at direct factory price

Pin
Type
Description
VCC
Power
Power supply
GND
Power
Ground
P0.03
BTX
TX of bluetooth model
P0.04
RTX
RX of bluetooth model
P0.17
SLP
Sleep is in high electrical level(or suspended), wake up is in low electrical level
P0.18
BTDATA
As for the requirement of data transmission(used for wake up the module)
0: module will wait for receiving the data from the host device when the device have data to transmit.
1: the signal line should set to the high electrical level mode when the host device have no data to transmit or after the data have finished the transmission by host.
P 0.12
FIFO_FULL
As for the judgement of the transmission space
0: module have available storage and it can transmit
1:the host machine stop transmitting and wait for the available storage released
